New Product Release 5MP 1.8mm Ultra Wide Angle Low Distortion M12 Lens

2026-08-01

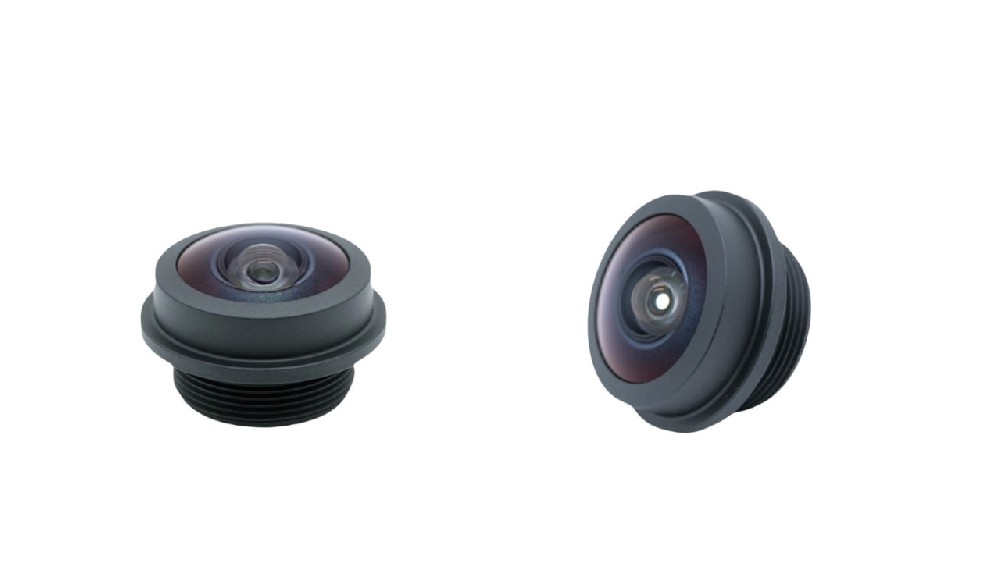

5MP 1.8mm Ultra Wide Angle Low Distortion M12 Lens – OPT-7160B

Capture More with a 208° Ultra-Wide Field of View

The OPT-7160B 5MP 1.8mm M12 Lens is designed for high-performance imaging applications requiring an extremely wide viewing angle. Featuring a 208° field of view, F2.0 aperture, and compact M12 design, it is ideal for security cameras, AI vision systems, robotics, smart home devices, and other embedded imaging solutions.

---

Key Features

• 5MP high-resolution optical performance

• 1.8mm focal length for ultra-wide coverage

• 208° ultra-wide field of view

• Bright F2.0 aperture for improved low-light imaging

• Standard M12 × 0.5 mount

• Compact and lightweight design

• Operating temperature: -20°C to +60°C

• Designed for industrial and embedded camera modules

---

Technical Specifications

Specification	Details
Model	OPT-7160B
Resolution	5MP
Image Format	1/2.9"
Focal Length	1.8mm
Aperture	F2.0
Mount	M12 × 0.5
Field of View	208° × 173° × 90°
Lens Construction	6 Elements + IR
Minimum Object Distance	0.3m
Back Focal Length	3.2mm
Optical Distortion	-8%
Dimensions	Φ16 × 10.6mm
Weight	5g
Operating Temperature	-20°C to +60°C

---

Applications

The OPT-7160B lens is suitable for:

• Security surveillance cameras

• Smart doorbells

• AI vision systems

• Robotics

• Autonomous devices

• Dash cameras

• Drones

• Smart home products

• Industrial inspection cameras

---

•
